Colour: GREY Gender: Female
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section

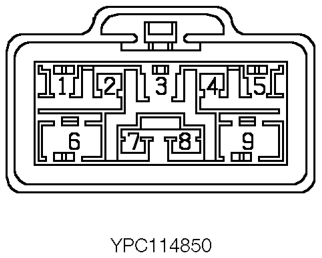

- C0929 Trailer pick-up › Colour: GREY Gender: Female
ConnectorsColour: GREY Gender: Female
| Cav 1 | Col GR | Cct ALL |
| 2 | RB | ALL |
| 3 | GW | ALL |
| 4 | RO | ALL |
| 5 | GP | ALL |
| 6 | P | ALL |
| 7 | GN | ALL |
| 8 | RY | ALL |
| 9 | B | ALL |

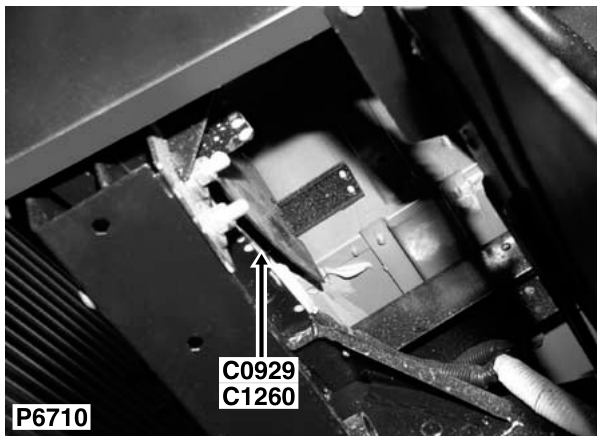

Description: Trailer pick-up Location: Below RH rear wheelarch
Colour: GREY Gender: Female
