Colour: NATURAL Gender: Female
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C1042 Switch - Horn / Dim dip › Colour: NATURAL Gender: Female
ConnectorsColour: NATURAL Gender: Female
| Cav 1 | Col U | Cct ALL |
| 2 | GW | 3 |
| 3 | LGN | 3 |
| 4 | GR | 3 |
| 5 | UW | 3 |
| 6 | UR | ALL |
| 7 | NP | 3 |
| 8 | PB | 3 |

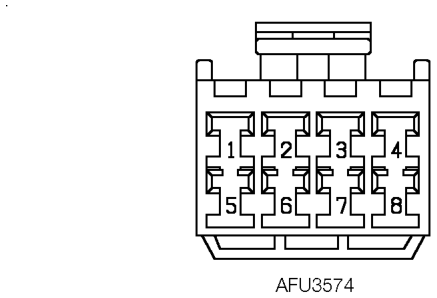

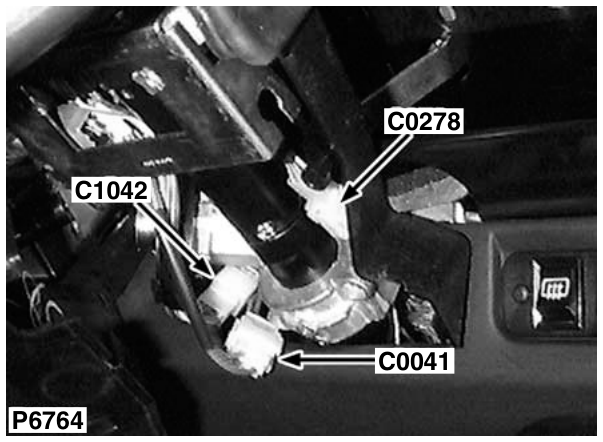

Description: Switch - Horn / Dim dip Location: Behind steering column cowl LH side
Colour: NATURAL Gender: Female
