Colour: GREY Gender: Male
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C1265 Wing harness to main harness › Colour: GREY Gender: Male
ConnectorsColour: GREY Gender: Male
| Cav 1 | Col US | Cct ALL |
| 2 | UK | ALL |
| 3 | B | ALL |
| 4 | GR | ALL |
| 5 | RB | ALL |
| 6 | PB | ALL |
| 7 | RO | 37 |
| 7 | UO | 42 |
| 8 | OB | 37 |
| 9 | B | 37 |
| 10 | B | 37 |
| 11 | B | 37 |
| 12 | LGB | ALL |
| 13 | BLG | ALL |
| 14 | UY | 37 |

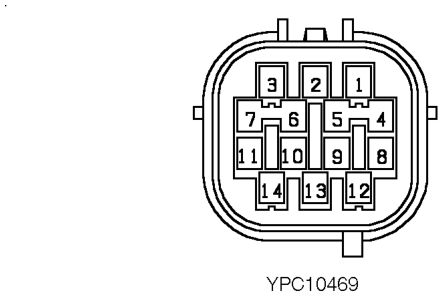

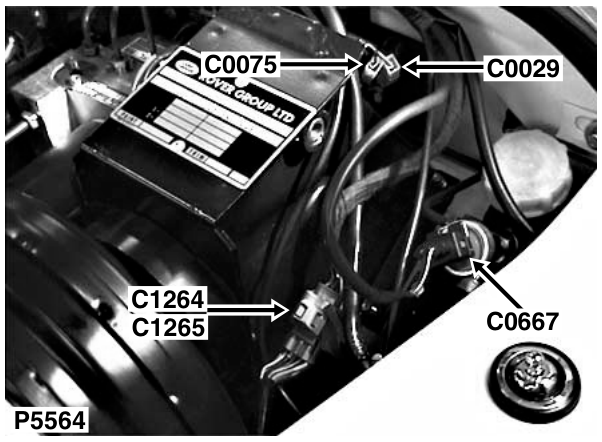

Description: Wing harness to main harness Location: Adjacent pedal box
Colour: GREY Gender: Male
