Colour: GREY Gender: Female
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C1305 Trailer pick-up › Colour: GREY Gender: Female

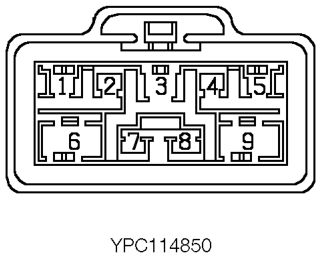

ConnectorsColour: GREY Gender: Female
| Cav 1 | Col GR | Cct 16 |
| 2 | RB | 16 |
| 3 | GW | 16 |
| 4 | RO | 16 |
| 5 | GP | 16 |
| 6 | P | 16 |
| 7 | GN | 16 |
| 8 | RY | 16 |
| 9 | B | ALL |
Description: Trailer pick-up Location: Below RH rear wheelarch
Colour: GREY Gender: Female
