Description: Coil - Transponder
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C1318 Coil - Transponder › Description: Coil - Transponder

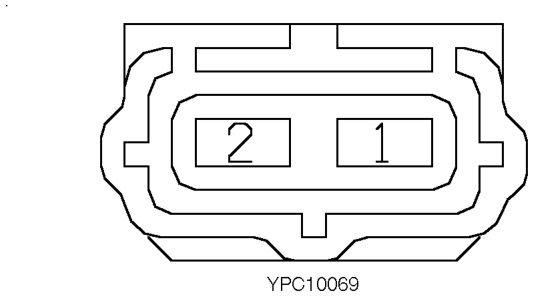

ConnectorsDescription: Coil - Transponder
| Cav 1 | Col OG | Cct 20 |
| 2 | OP | 20 |
Description: Coil - Transponder

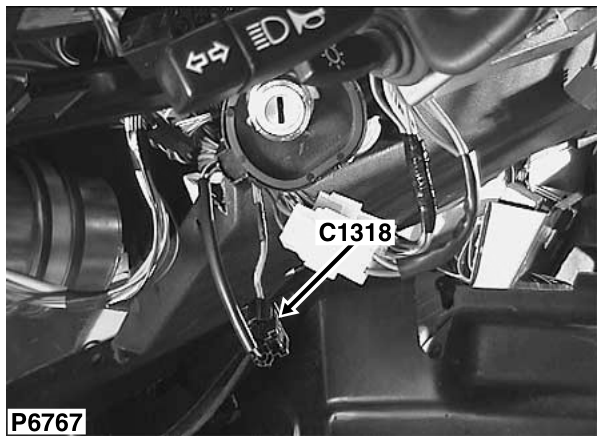

Location: Behind steering column cowl LH side
Colour: BLACK Gender: Female
