Make

Land Rover

Model

Defender Electrical Library

Year

2002 on

Section

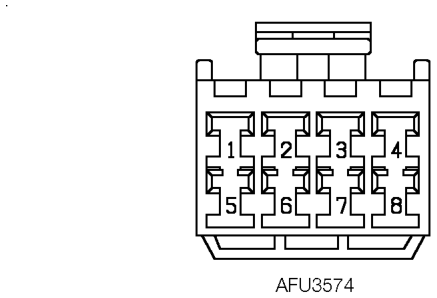

C1739 Switch - Horn / Dim dip › Colour: NATURAL Gender: Female

ConnectorsColour: NATURAL Gender: Female

Cav 1	Col U	Cct 2
2	GW	2
3	LGN	2
4	GR	2
5	UW	2
6	UR	2
7	NP	2
8	PB	2

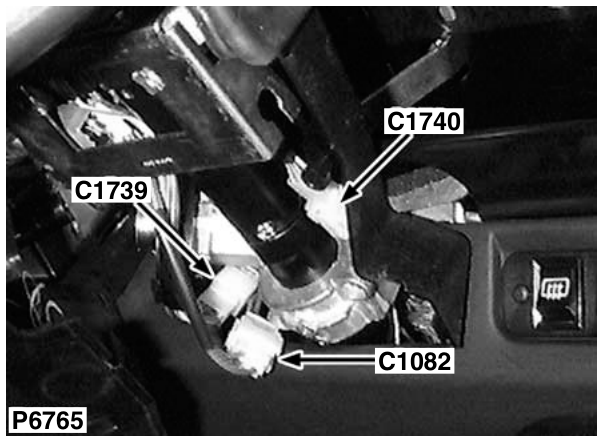

Description: Switch - Horn / Dim dip Location: Behind steering column cowl LH side

Colour: NATURAL Gender: Female
