Colour: GREY Gender: Male
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C1763 Chassis harness to main harness › Colour: GREY Gender: Male
ConnectorsColour: GREY Gender: Male
| Cav 1 | Col RO | Cct 16 |
| 2 | RB | 16 |
| 3 | RY | 16 |
| 4 | GR | 16 |
| 5 | GW | 16 |
| 6 | GP | 16 |
| 7 | S | 16 |
| 8 | W | 16 |
| 9 | GN | 16 |

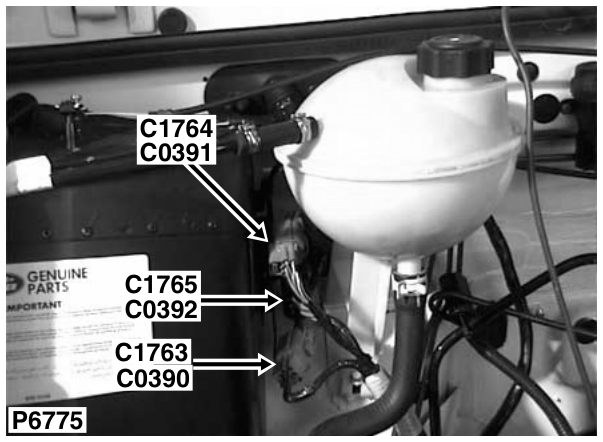

Description: Chassis harness to main harness Location: Rear of engine compartment
Colour: GREY Gender: Male
