Description: ECU - Alarm
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C1980 ECU - Alarm › Description: ECU - Alarm
ConnectorsDescription: ECU - Alarm
| Cav 1 | Col GW | Cct 20 |
| 2 | O | 20 |
| 3 | K | 20 |
| 4 | K | 20 |
| 5 | OW | 20 |
| 6 | GR | 20 |
| 7 | OG | 20 |
| 8 | PN | 20 |
| 9 | O | 20 |
| 10 | BO | 20 |
| 11 | B | 20 |
| 12 | OP | 20 |

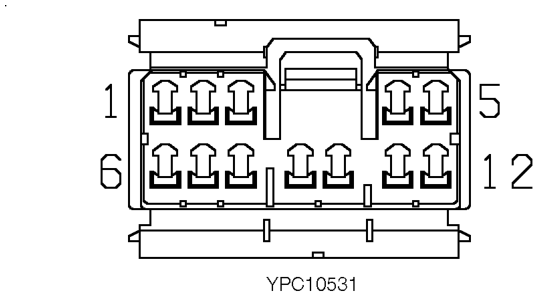

Description: ECU - Alarm

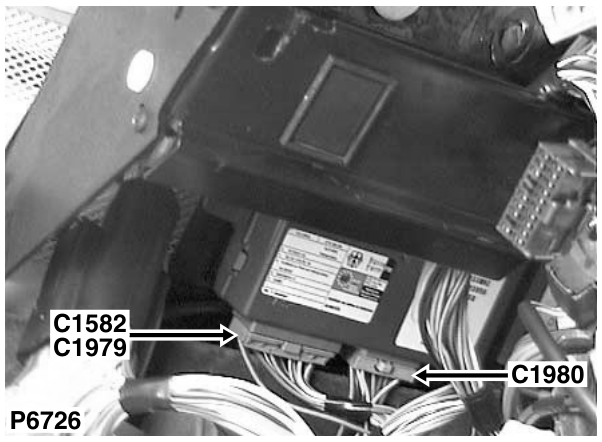

Location: Behind instrument pack
Colour: GREEN Gender: Female
