Land Rover Defender Electrical Library (2002 on)05 · Connectors
05 · General

Description: Lamp - Reverse - RH

Make
Land Rover
Model
Defender Electrical Library
Year
2002 on
Section
C2119 Lamp - Reverse - RH › Description: Lamp - Reverse - RH
ConnectorsDescription: Lamp - Reverse - RH
Cav
1
Col
B
Cct
ALL
2SALL
Diagram

Description: Lamp - Reverse - RH

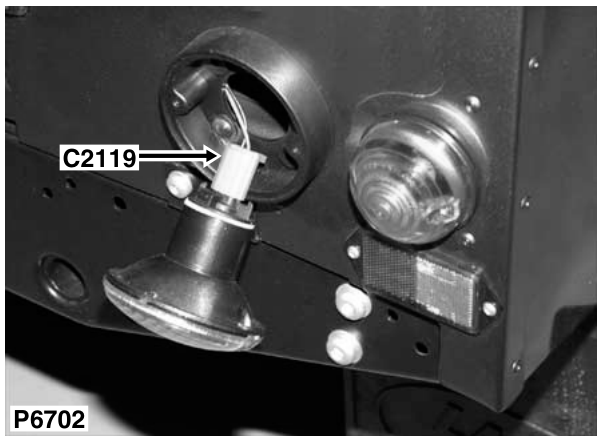

Location: RH rear of vehicle

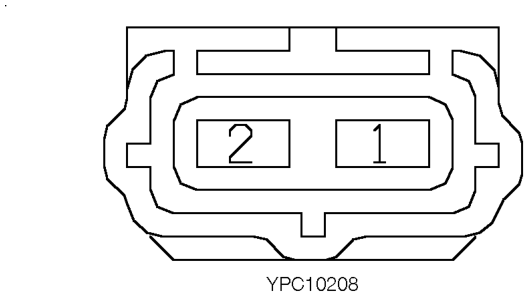

Description: lamp - reverse - rh – Location: RH rear of vehicle

Colour: BLUE Gender: Female
