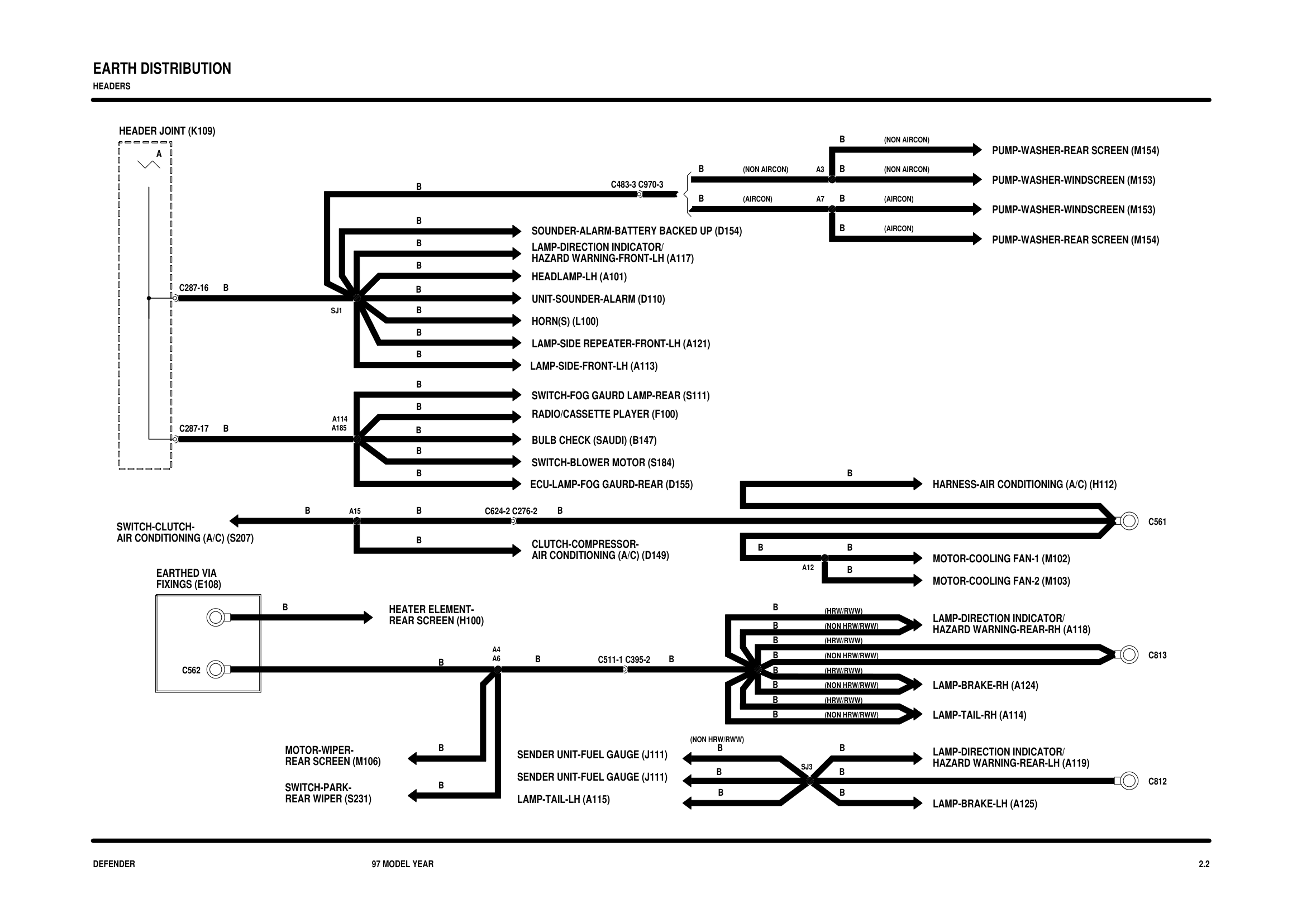

Earth distribution

EARTH DISTRIBUTION

HEADERS

HEADER JOINT (K109)

B (NON AIRCON)

A PUMP-WASHER-REAR SCREEN (M154)

B (NON AIRCON) A3 B (NON AIRCON)

C483-3 C970-3 PUMP-WASHER-WINDSCREEN (M153)

B (AIRCON) A7 B (AIRCON)

PUMP-WASHER-WINDSCREEN (M153)

SOUNDER-ALARM-BATTERY BACKED UP (D154) B (AIRCON)

B PUMP-WASHER-REAR SCREEN (M154)

LAMP-DIRECTION INDICATOR/

HAZARD WARNING-FRONT-LH (A117)

HEADLAMP-LH (A101)

C287-16 B B

UNIT-SOUNDER-ALARM (D110)

SJ1 B

HORN(S) (L100)

LAMP-SIDE REPEATER-FRONT-LH (A121)

LAMP-SIDE-FRONT-LH (A113)

SWITCH-FOG GAURD LAMP-REAR (S111)

A114 RADIO/CASSETTE PLAYER (F100)

C287-17 B A185 B

BULB CHECK (SAUDI) (B147)

SWITCH-BLOWER MOTOR (S184)

B B

ECU-LAMP-FOG GAURD-REAR (D155) HARNESS-AIR CONDITIONING (A/C) (H112)

B A15 B C624-2 C276-2 B

C561

SWITCH-CLUTCH-

AIR CONDITIONING (A/C) (S207) B

CLUTCH-COMPRESSOR- B B

AIR CONDITIONING (A/C) (D149) MOTOR-COOLING FAN-1 (M102)

A12 B

EARTHED VIA

FIXINGS (E108) MOTOR-COOLING FAN-2 (M103)

B HEATER ELEMENT- B (HRW/RWW)

REAR SCREEN (H100) LAMP-DIRECTION INDICATOR/

B (NON HRW/RWW) HAZARD WARNING-REAR-RH (A118)

B (HRW/RWW)

A6 B C511-1 C395-2 B B (NON HRW/RWW) C813

C562 B (HRW/RWW)

B (NON HRW/RWW) LAMP-BRAKE-RH (A124)

B (HRW/RWW)

B (NON HRW/RWW) LAMP-TAIL-RH (A114)

(NON HRW/RWW)

MOTOR-WIPER- B B B LAMP-DIRECTION INDICATOR/

SENDER UNIT-FUEL GAUGE (J111)

REAR SCREEN (M106) HAZARD WARNING-REAR-LH (A119)

SJ3

B B

SENDER UNIT-FUEL GAUGE (J111) C812

SWITCH-PARK- B

B B

REAR WIPER (S231) LAMP-TAIL-LH (A115)

LAMP-BRAKE-LH (A125)

DEFENDER 97 MODEL YEAR 2.2
