Exterior lamps

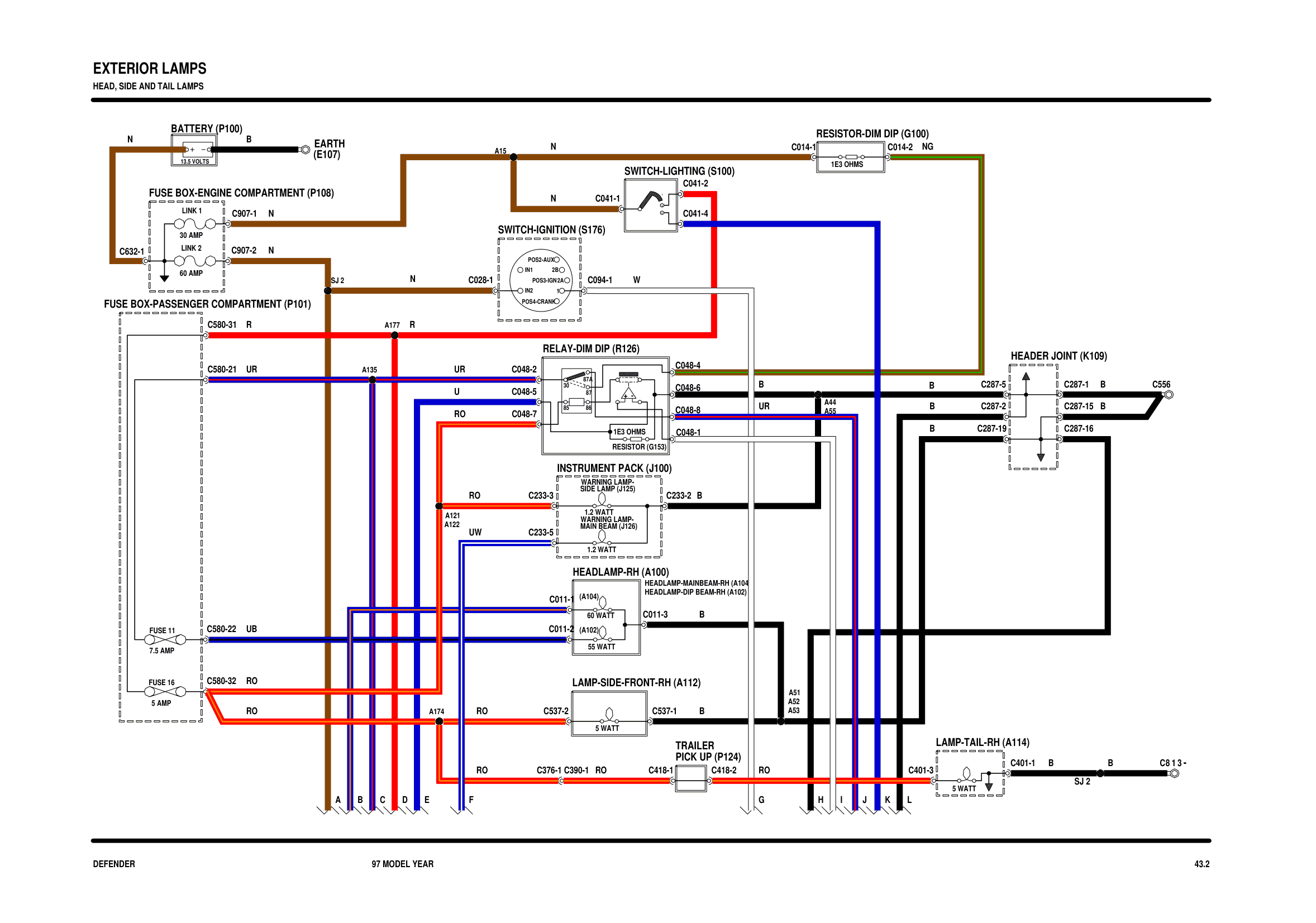

EXTERIOR LAMPS

HEAD, SIDE AND TAIL LAMPS

BATTERY (P100)

RESISTOR-DIM DIP (G100)

N B EARTH

A15 N C014-1 C014-2 NG

(E107)

13.5 VOLTS 1E3 OHMS

SWITCH-LIGHTING (S100)

C041-2

FUSE BOX-ENGINE COMPARTMENT (P108) 1

N C041-1

LINK 1 C907-1 N 3 C041-4

SWITCH-IGNITION (S176)

30 AMP

C632-1 LINK 2 C907-2 N

POS2-AUX

60 AMP IN1 2B

SJ 2 N C028-1 POS3-IGN 2A C094-1 W

IN2 1

FUSE BOX-PASSENGER COMPARTMENT (P101) POS4-CRANK

C580-31 R A177 R

RELAY-DIM DIP (R126)

HEADER JOINT (K109)

C580-21 UR A135 UR C048-2 C048-4

87A

30 C048-6 B B C287-5 C287-1 B C556

U C048-5 87 + -

UR A44 B C287-2 C287-15 B

85 86 C048-8 A55

RO C048-7

1E3 OHMS C048-1 B C287-19 C287-16

RESISTOR (G153)

INSTRUMENT PACK (J100)

WARNING LAMP-

SIDE LAMP (J125)

RO C233-3 C233-2 B

A121 1.2 WATT

WARNING LAMP-

A122 MAIN BEAM (J126)

UW C233-5

1.2 WATT

HEADLAMP-RH (A100)

HEADLAMP-MAINBEAM-RH (A104)

(A104) HEADLAMP-DIP BEAM-RH (A102)

C011-1

60 WATT C011-3 B

FUSE 11 C580-22 UB C011-2 (A102)

7.5 AMP 55 WATT

FUSE 16 C580-32 RO LAMP-SIDE-FRONT-RH (A112)

A51

5 AMP A52

RO A174 RO C537-2 C537-1 B A53

5 WATT

TRAILER LAMP-TAIL-RH (A114)

PICK UP (P124)

C401-1 B B C 8 1 3 -

RO C376-1 C390-1 RO C418-1 C418-2 RO C401-3

SJ 2

5 WATT

A B C D E F G H I J K L

DEFENDER 97 MODEL YEAR 43.2
