Instruments

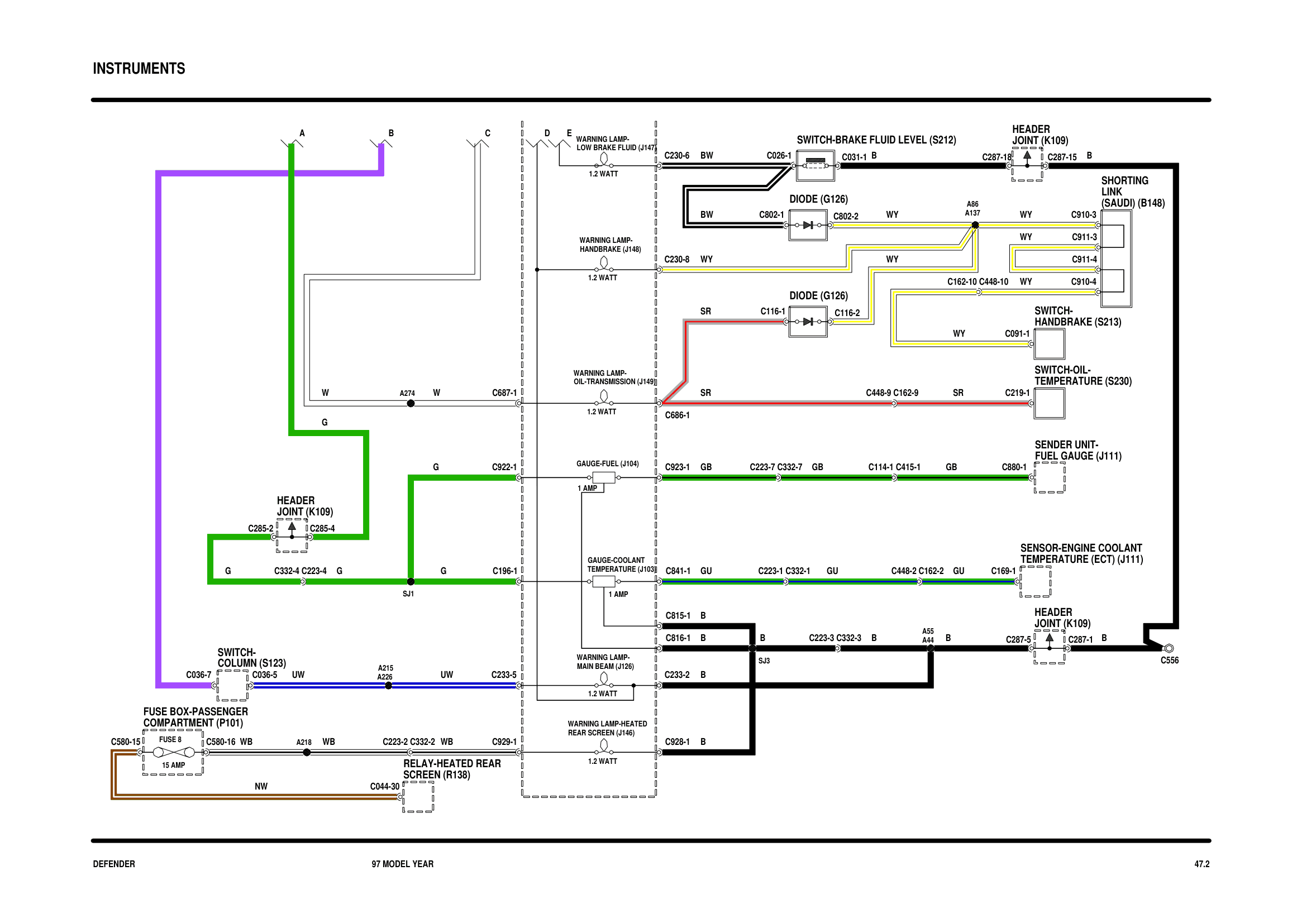

INSTRUMENTS

A B C D E HEADER

WARNING LAMP- SWITCH-BRAKE FLUID LEVEL (S212) JOINT (K109)

LOW BRAKE FLUID (J147)

C230-6 BW C026-1 C031-1 B C287-18 C287-15 B

1.2 WATT

SHORTING

LINK

DIODE (G126) A86 (SAUDI) (B148)

BW C802-1 C802-2 WY A137 WY C910-3

WARNING LAMP- WY C911-3

HANDBRAKE (J148)

C230-8 WY WY C911-4

1.2 WATT C162-10 C448-10 WY C910-4

DIODE (G126)

SR C116-1 C116-2 SWITCH-

HANDBRAKE (S213)

WY C091-1

WARNING LAMP- SWITCH-OIL-

OIL-TRANSMISSION (J149) TEMPERATURE (S230)

W A274 W C687-1 SR C448-9 C162-9 SR C219-1

1.2 WATT C686-1

SENDER UNIT-

FUEL GAUGE (J111)

G C922-1 GAUGE-FUEL (J104) C923-1 GB C223-7 C332-7 GB C114-1 C415-1 GB C880-1

1 AMP

HEADER

JOINT (K109)

C285-2 C285-4

SENSOR-ENGINE COOLANT

GAUGE-COOLANT TEMPERATURE (ECT) (J111)

G C332-4 C223-4 G G C196-1 TEMPERATURE (J103) C841-1 GU C223-1 C332-1 GU C448-2 C162-2 GU C169-1

SJ1 1 AMP

C815-1 B HEADER

JOINT (K109)

A55

C816-1 B B C223-3 C332-3 B A44 B C287-5 C287-1 B

SWITCH-

WARNING LAMP- SJ3 C556

COLUMN (S123) A215 MAIN BEAM (J126)

C036-7 C036-5 UW A226 UW C233-5 C233-2 B

1.2 WATT

FUSE BOX-PASSENGER

COMPARTMENT (P101) WARNING LAMP-HEATED

REAR SCREEN (J146)

C580-15 FUSE 8 C580-16 WB A218 WB C223-2 C332-2 WB C929-1 C928-1 B

15 AMP RELAY-HEATED REAR 1.2 WATT

SCREEN (R138)

NW C044-30

DEFENDER 97 MODEL YEAR 47.2
