Switch - Bonnet
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C007 › Switch - Bonnet

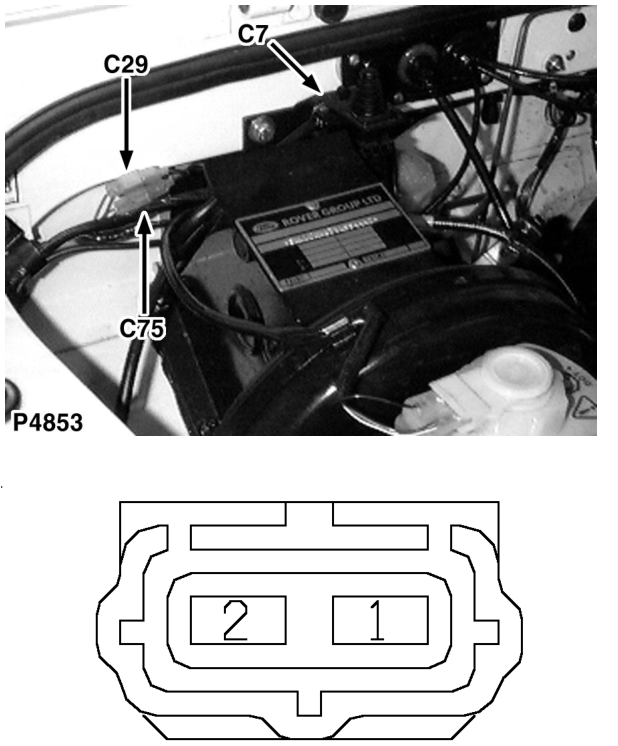

ConnectorsSwitch - Bonnet
Switch - Bonnet
Female
BLACK
RH side of bulkhead
| Cav | Col | CCT |
|---|---|---|
| 1 | B | 20 |
| 2 | OU | 20 |
