ECU - Alarm
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section

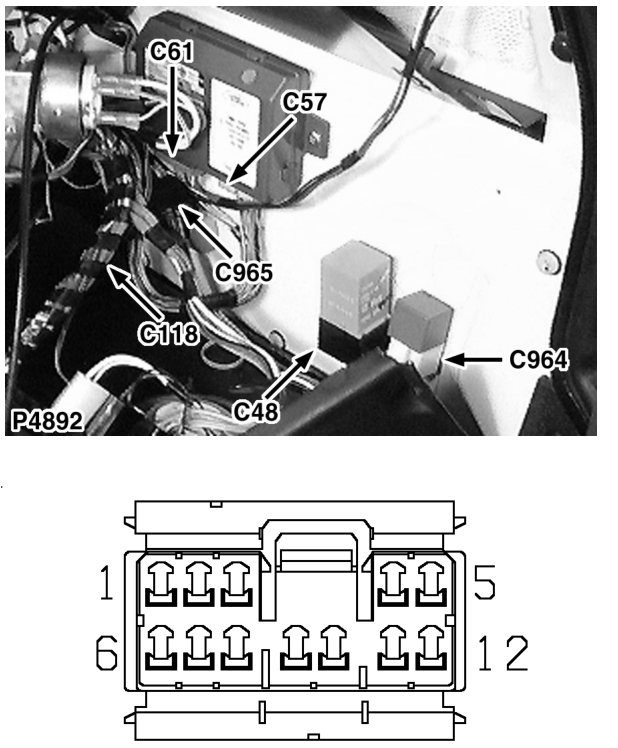

- C057 › ECU - Alarm
ConnectorsECU - Alarm
ECU - Alarm
Female
GREEN
Behind RH side of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | GW | 20 |
| 4 | K | 20 |
| 5 | OW | 20 |
| 6 | GR | 20 |
| 7 | OG | 20 |
| 8 | P | 20 |
| 9 | O | 20 |
| 10 | BO | 20 |
| 11 | B | 20 |
| 12 | OP | 20 |
