ECU - Alarm
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C061 › ECU - Alarm

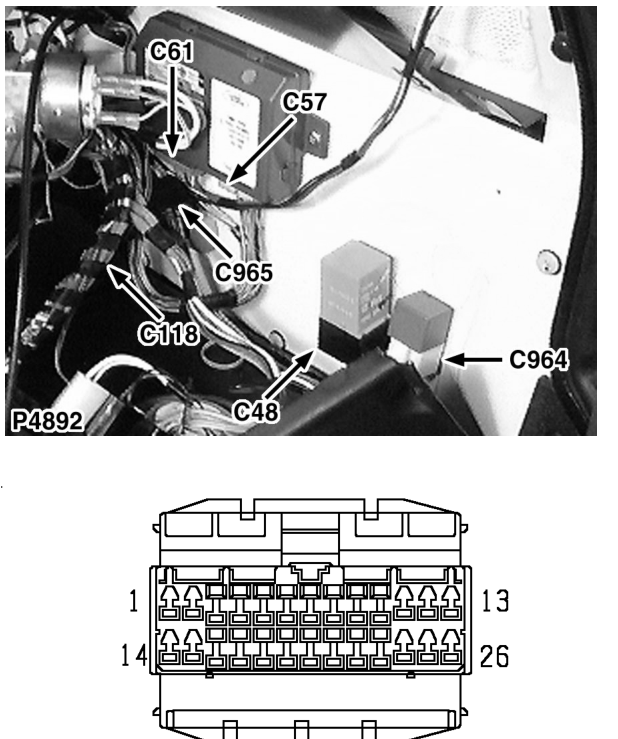

ConnectorsECU - Alarm
ECU - Alarm
Female
GREY
Behind RH side of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | PW | 20 |
| 3 | WB | 20 |
| 5 | SW | 20 |
| 9 | OU | 20 |
| 10 | G | 20 |
| 14 | ON | 20 |
| 16 | PU | 20 |
| 17 | OLG | 20 |
| 20 | BN | 20 |
| 25 | N | 20 |
| 26 | OS | 20 |
