Female
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C096 › Female
ConnectorsFemale

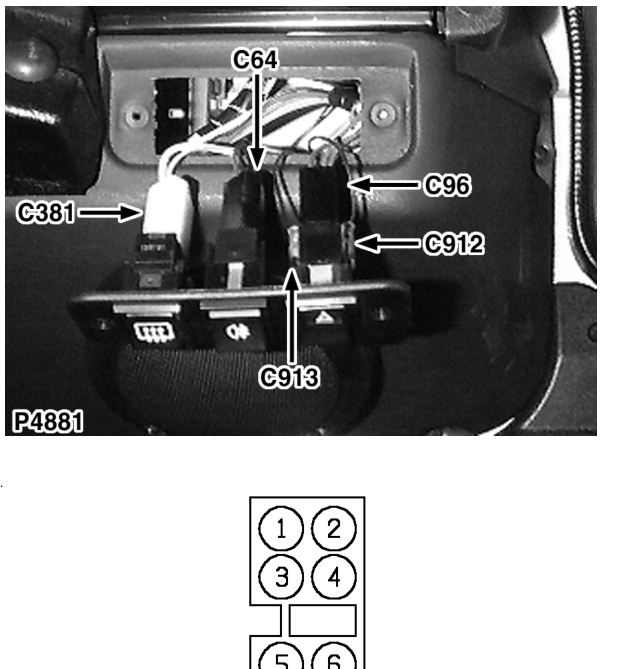

Switch - Hazard warning
Female
NATURAL
Behind RH side of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | BR | ALL |
| 2 | LGN | ALL |
| 3 | GR | ALL |
| 4 | GW | ALL |
| 5 | LG | ALL |
| 7 | G | 1 |
| 7 | P | 2 |
| 7 | P | 20 |
| 8 | P | 1 |
| 8 | G | 2 |
| 8 | G | 20 |
