C114 (page 2 of 2)
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C114

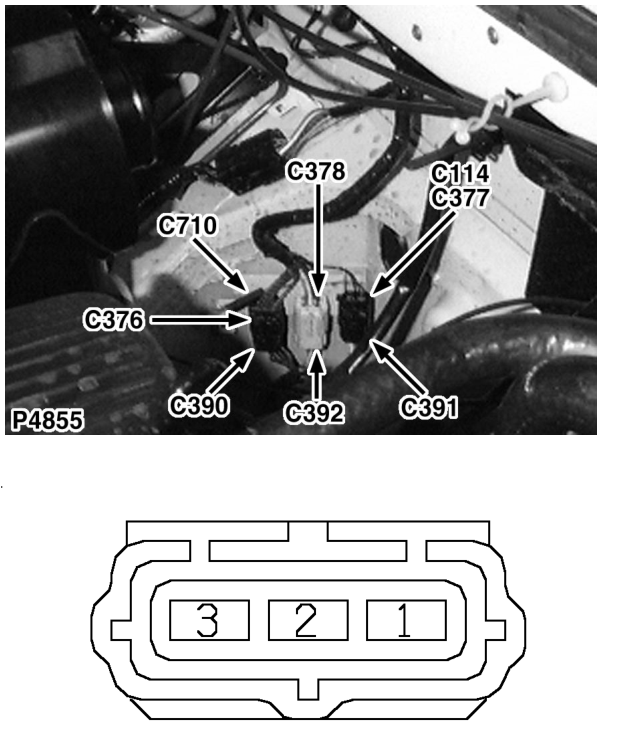

ConnectorsC114 · page 2 of 2
Fuel tank
300 TDi (Immobilisation) Female BLACK
RH side of bulkhead
| Cav | Col | CCT |
|---|---|---|
| 1 | GB | 20 |
| 2 | B | 20 |
