Diode
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C116 › Diode
ConnectorsDiode
Diode
BLACK

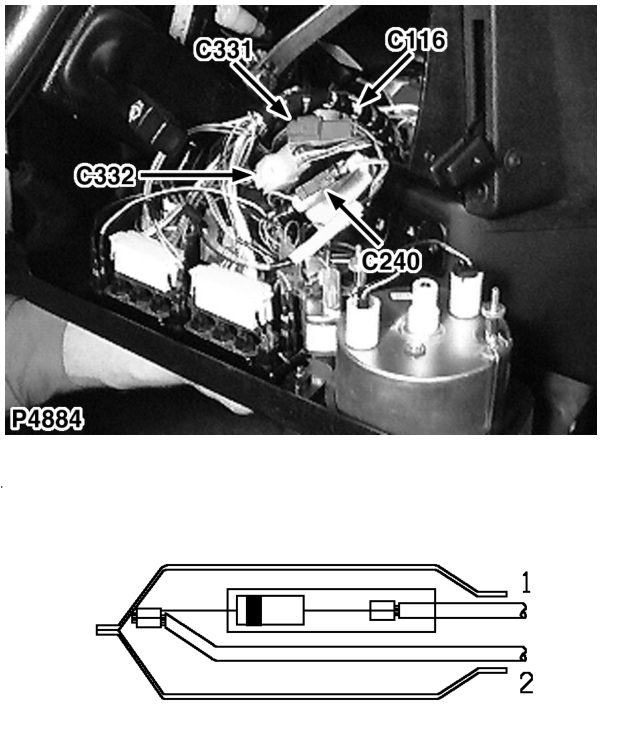

Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | SR | 1 |
| 1 | W | 3 |
| 1 | SR | 12 |
| 1 | WY | 20 |
| 2 | WY | 1 |
| 2 | WY | 12 |
| 2 | SR | 20 |
