Male
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C162 › Male
ConnectorsMale

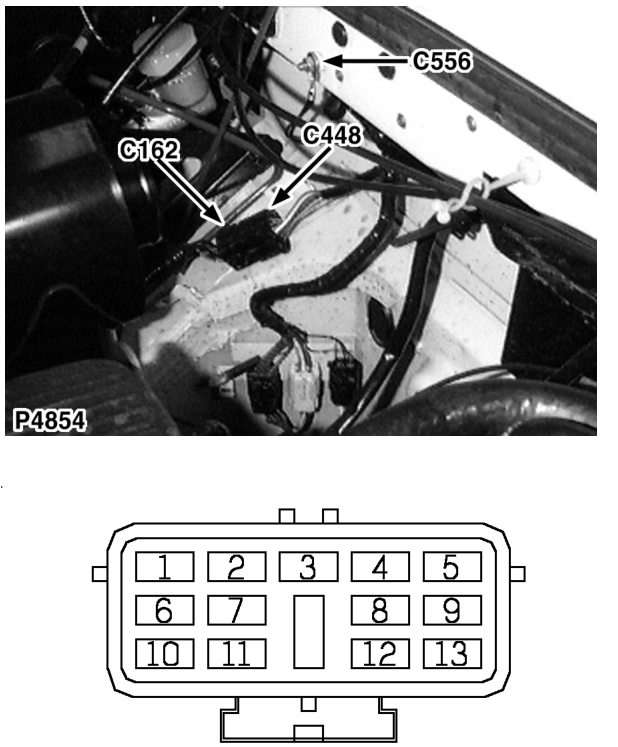

Main harness to engine harness
Male
BLACK
RH side of bulkhead
| Cav | Col | CCT |
|---|---|---|
| 1 | WN | ALL |
| 2 | GU | ALL |
| 3 | NY | ALL |
| 4 | W | 3 |
| 4 | W | 4 |
| 4 | W | 5 |
| 4 | B | ALL |
| 5 | G | ALL |
| Cav | Col | CCT |
|---|---|---|
| 6 | GN | ALL |
| 7 | BU | ALL |
| 8 | B | ALL |
| 9 | SR | ALL |
| 10 | WY | ALL |
| 11 | NY | 5 |
| 11 | B | ALL |
| 13 | B | ALL |
