Female
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C175 › Female
ConnectorsFemale

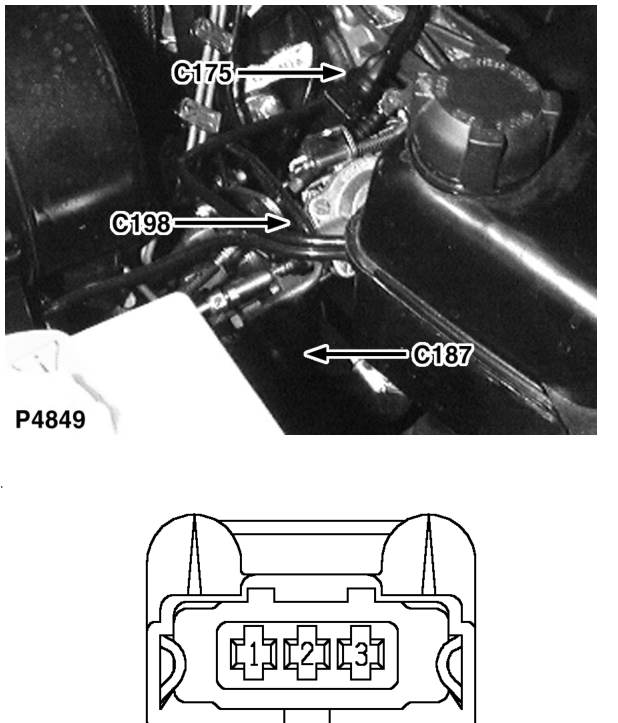

Sensor - Throttle position (TP)
Female
BLACK
RH side of engine
| Cav | Col | CCT |
|---|---|---|
| 1 | KB | 10 |
| 2 | R | 10 |
| 3 | RB | 10 |
