Instrument Pack
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C233 › Instrument Pack
ConnectorsInstrument Pack
Instrument Pack
Female
NATURAL

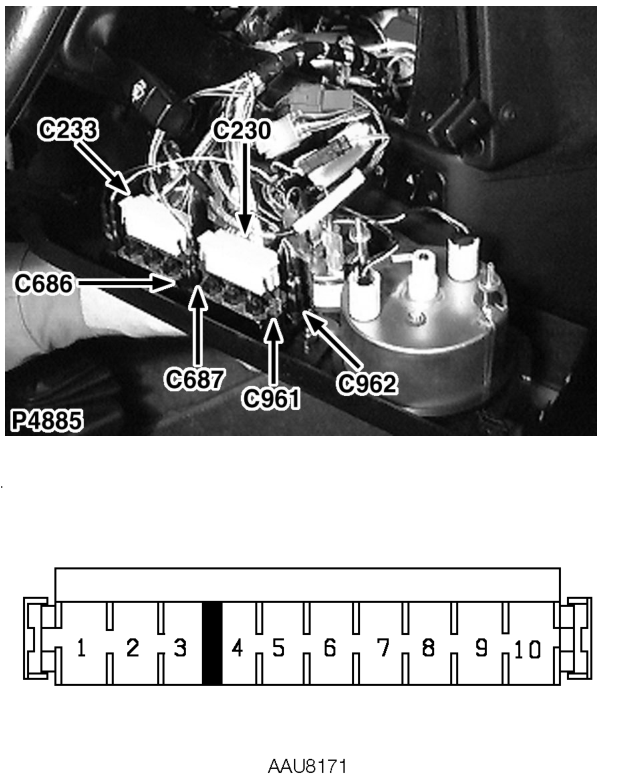

Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | LGP | ALL |
| 2 | B | ALL |
| 3 | RO | ALL |
| 4 | RY | ALL |
| 5 | UW | ALL |
| 8 | BU | ALL |
| 9 | W | 1 |
| Cav | Col | CCT |
|---|---|---|
| 9 | W | 2 |
| 9 | NR | 15 |
| 9 | W | 20 |
| 10 | YB | 1 |
| 10 | YB | 2 |
| 10 | B | 15 |
| 10 | YB | 20 |
