Female
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section

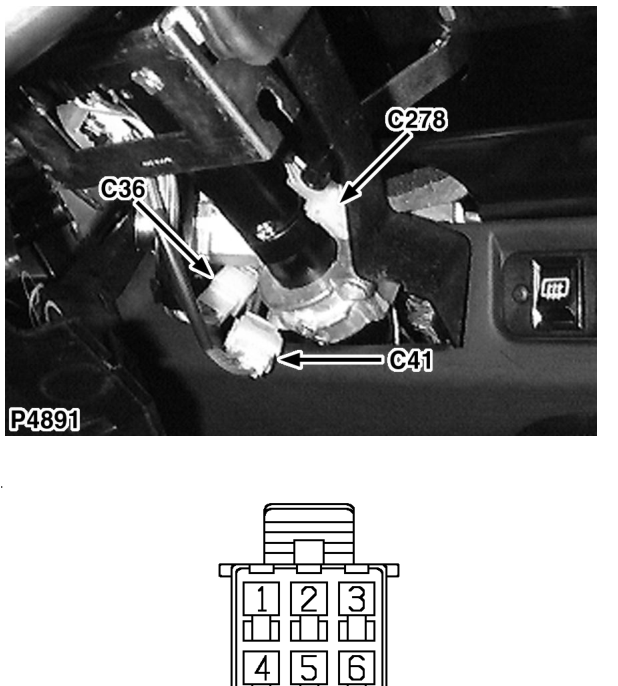

- C278 › Female
ConnectorsFemale
Switch - Wash / wipe - Windscreen
Female
NATURAL
Behind steering column cowl - RH side
| Cav | Col | CCT |
|---|---|---|
| 1 | ULG | ALL |
| 2 | LGB | ALL |
| 3 | WG | ALL |
| 4 | YLG | ALL |
| 5 | RLG | ALL |
| 6 | G | ALL |
