Female
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C332 › Female
ConnectorsFemale

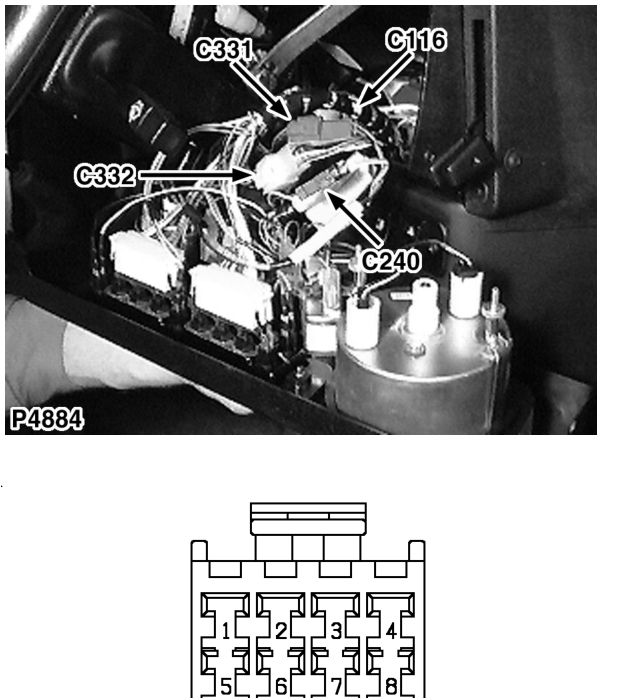

Instrument pack harness to main harness
Female
NATURAL
Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | GU | ALL |
| 2 | WB | ALL |
| 3 | B | ALL |
| 4 | G | ALL |
| 5 | RO | ALL |
| 7 | GB | ALL |
