Female
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C448 › Female
ConnectorsFemale

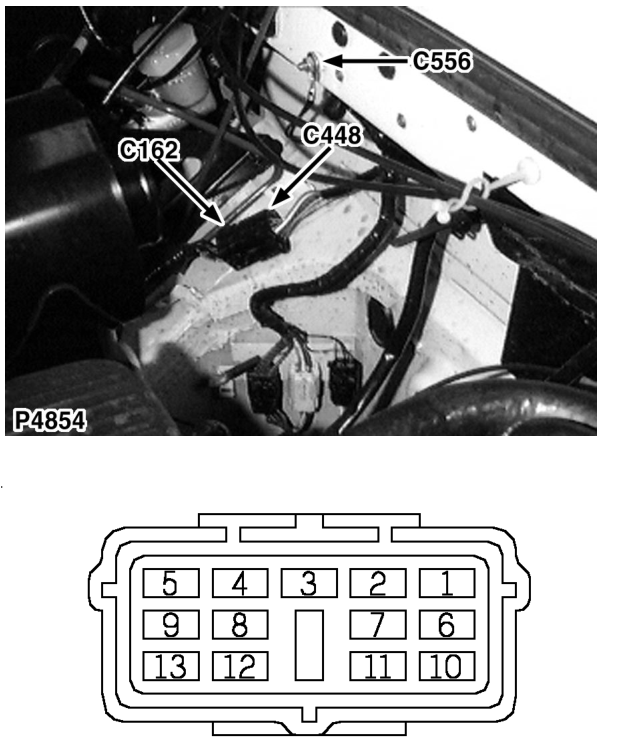

Engine harness to main harness
Female
BLACK
RH side of bulkhead
| Cav | Col | CCT |
|---|---|---|
| 1 | WN | ALL |
| 2 | GU | ALL |
| 3 | NY | ALL |
| 4 | W | 1 |
| 4 | W | 2 |
| 4 | WB | 15 |
| 4 | W | 20 |
| 5 | G | ALL |
| Cav | Col | CCT |
|---|---|---|
| 6 | GN | ALL |
| 7 | BU | ALL |
| 8 | B | ALL |
| 9 | SR | ALL |
| 10 | WY | ALL |
| 11 | OLG | 20 |
| 13 | ON | 20 |
