Switch - Clutch - Air
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section

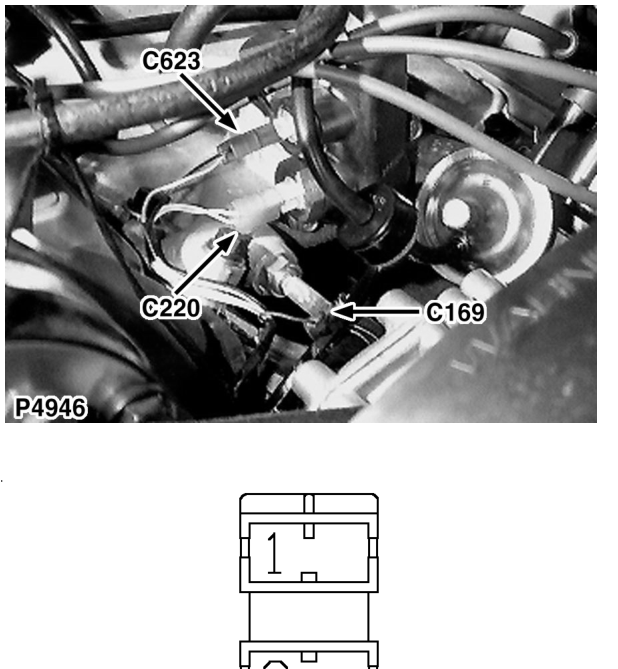

- C623 › Switch - Clutch - Air
ConnectorsSwitch - Clutch - Air
Switch - Clutch - Air
conditioning (A/C)
Female
GREEN
Front of engine - centre
| Cav | Col | CCT |
|---|---|---|
| 1 | WK | 3 |
| 2 | B | 3 |
