Female
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C786 › Female
ConnectorsFemale

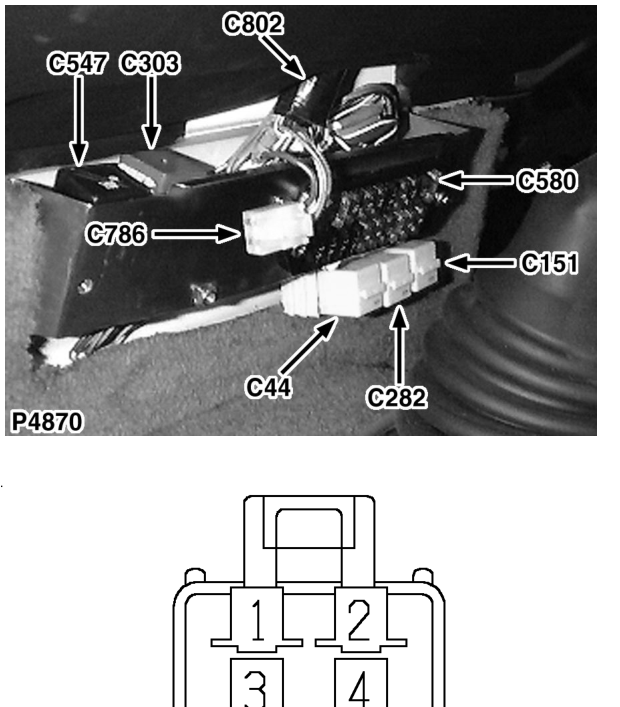

Main harness to air conditioning (A/C) harness
Female
NATURAL
Behind passenger compartment fusebox cover
| Cav | Col | CCT |
|---|---|---|
| 1 | NS | ALL |
| 2 | NO | ALL |
| 3 | N | ALL |
| 4 | WO | ALL |
