Male
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section

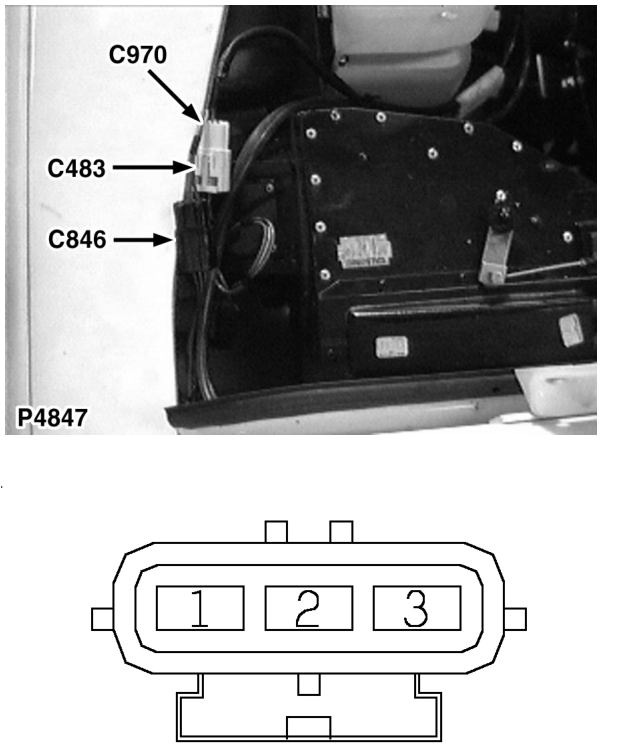

- C970 › Male
ConnectorsMale
Front wash / wipe harness to main harness
Male
BLACK
Rear LH side of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | BLG | ALL |
| 2 | LGB | ALL |
| 3 | B | ALL |
