Female
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0019 › Female
ConnectorsFemale
Relay - Cooling fan - Td5

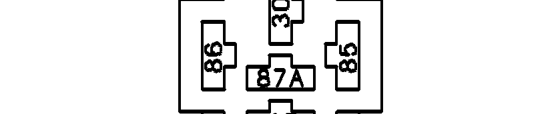

Female
YELLOW

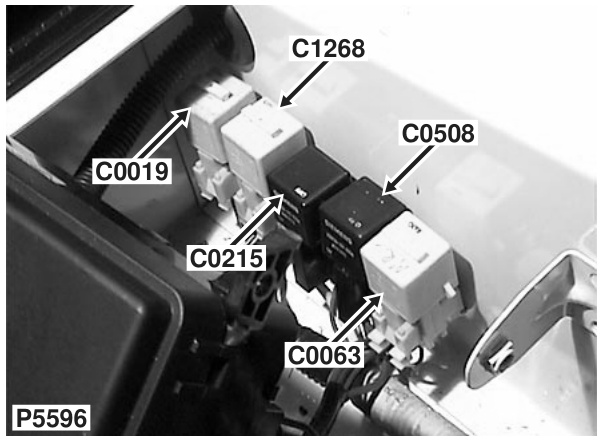

Beneath RH seat
| Cav | Col | CCT |
|---|---|---|
| 30 | NS | 1 |
| 85 | WG | 1 |
| 85 | NO | 1 |
| 86 | BP | 1 |
| 87 | BN | 1 |
