Female
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0036 › Female
ConnectorsFemale

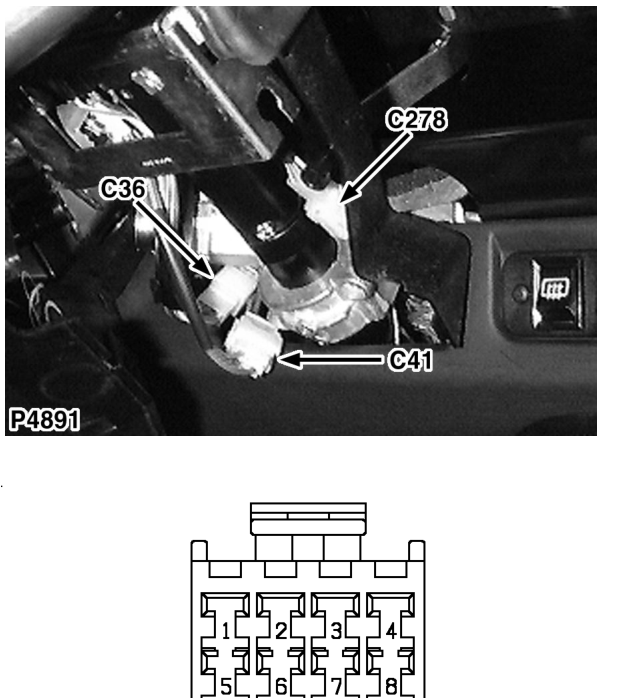

Switch - Direction indicator
Female
NATURAL
Behind steering column cowl LH side
| Cav | Col | CCT |
|---|---|---|
| 1 | U | ALL |
| 2 | GW | ALL |
| 3 | LGN | ALL |
| 4 | GR | ALL |
| 5 | UW | ALL |
| 6 | UR | ALL |
| 7 | NP | ALL |
| 8 | PB | ALL |
