ECU - Alarm
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0057 › ECU - Alarm

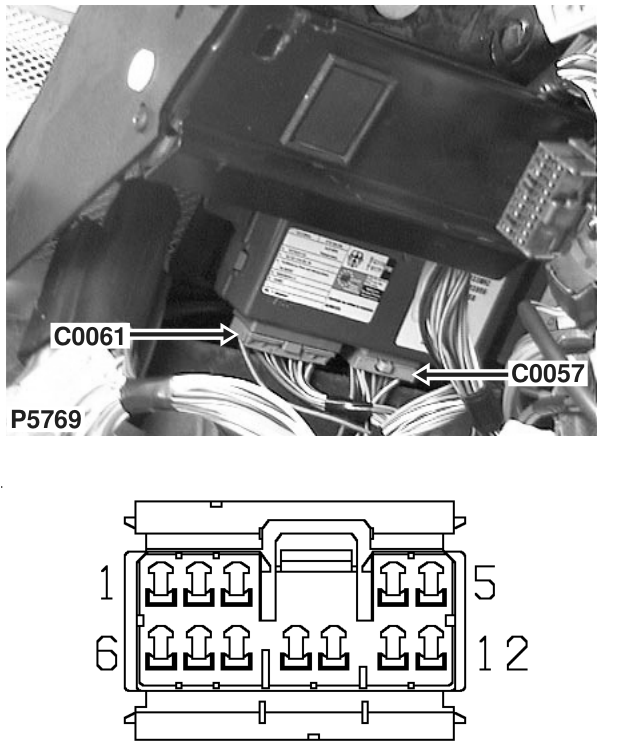

ConnectorsECU - Alarm
ECU - Alarm
Female
GREEN
Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | GW | ALL |
| 4 | K | ALL |
| 5 | OW | ALL |
| 6 | GR | ALL |
| 7 | OG | ALL |
| 8 | PN | ALL |
| 9 | O | ALL |
| 10 | BO | ALL |
| 11 | B | ALL |
| 12 | OP | ALL |
