Female
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0114 › Female
ConnectorsFemale
Fuel tank - Td5

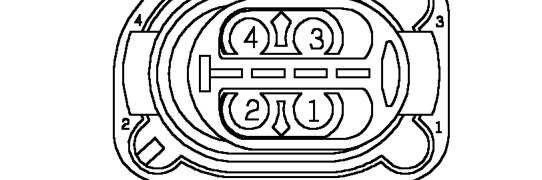

Female
BLACK

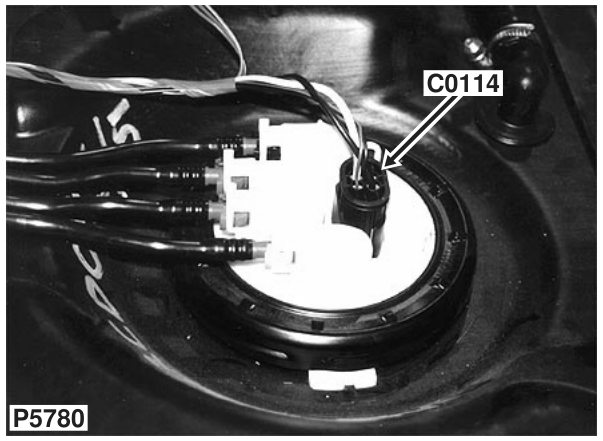

Above fuel tank
| Cav | Col | CCT |
|---|---|---|
| 1 | WP | 7 |
| 1 | WP | 8 |
| 2 | GB | 7 |
| 2 | GB | 8 |
| 3 | SB | 7 |
| 3 | SB | 8 |
| 4 | B | 7 |
| 4 | B | 8 |
