Instrument Pack
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0230 › Instrument Pack
ConnectorsInstrument Pack
Instrument Pack

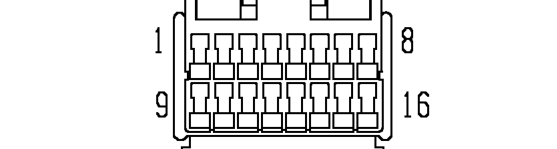

Female
BLACK

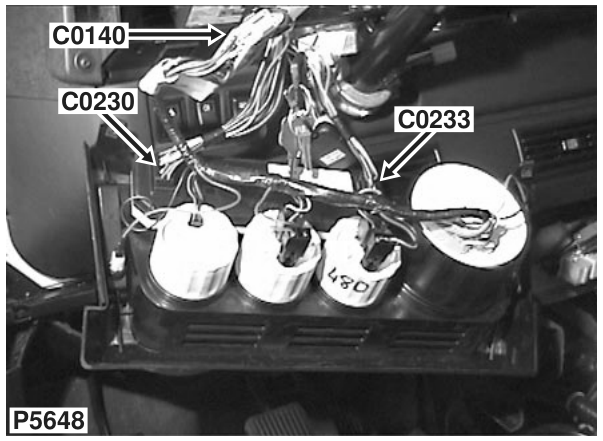

Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | WG | ALL |
| 2 | YB | 28 |
| 4 | OG | 21 |
| 5 | SR | ALL |
| 6 | RS | ALL |
| 7 | RS | ALL |
| 8 | B | ALL |
| 9 | BW | ALL |
| 10 | RS | ALL |
| 13 | BW | ALL |
| 14 | BW | ALL |
| 16 | YS | ALL |
