Instrument Pack
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0233 › Instrument Pack
ConnectorsInstrument Pack
Instrument Pack

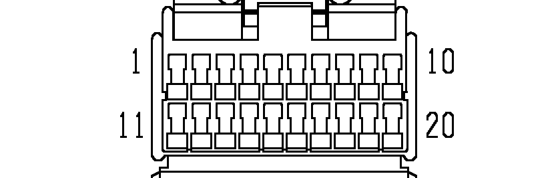

Female
BLACK

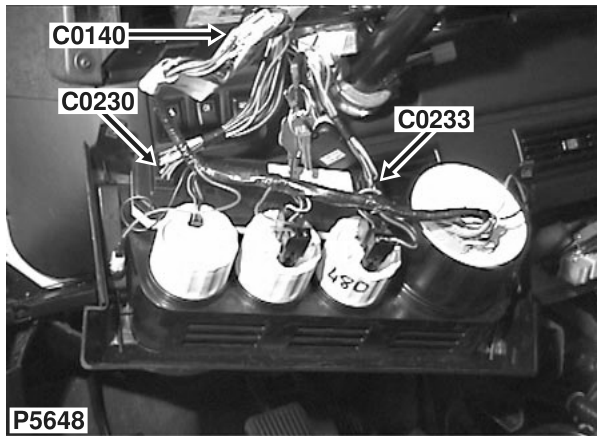

Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | UW | 3 |
| 2 | GW | ALL |
| 3 | WO | ALL |
| 4 | RY | ALL |
| 5 | O | ALL |
| 6 | BK | 4 |
| 7 | BU | ALL |
| 8 | WB | ALL |
| 9 | BR | ALL |
| Cav | Col | CCT |
|---|---|---|
| 10 | LGP | ALL |
| 11 | UW | 4 |
| 11 | RS | 21 |
| 12 | BY | ALL |
| 13 | WN | ALL |
| 16 | WG | ALL |
| 17 | YN | ALL |
| 18 | GR | ALL |
| 20 | RO | ALL |
