Male
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0277 › Male
ConnectorsMale
Main harness to air conditioning (A/C) harness

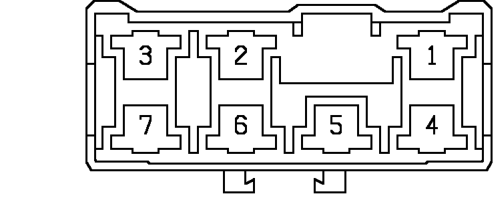

Male
BROWN

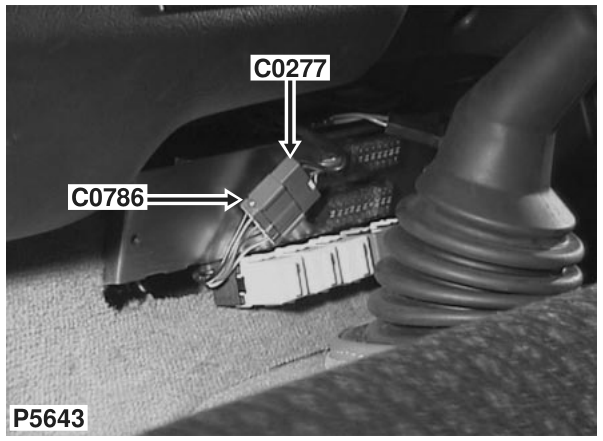

Beneath centre console
| Cav | Col | CCT |
|---|---|---|
| 1 | GW | 1 |
| 3 | SR | 1 |
| 4 | BW | 1 |
| 5 | RB | 1 |
| 6 | N | 1 |
| 7 | BU | 1 |
