Switch - Trinary
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0279 › Switch - Trinary
ConnectorsSwitch - Trinary
Switch - Trinary
Female
BLACK

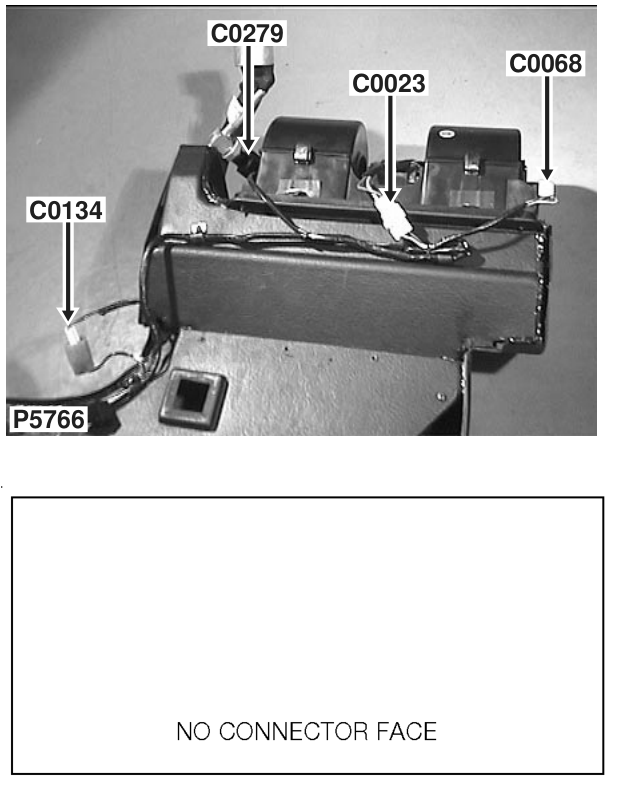

Behind RH side of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | NG | 1 |
| 2 | UB | 1 |
| 3 | O | 1 |
| 4 | SR | 1 |
