Male
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0378 › Male
ConnectorsMale
Main harness to chassis harness

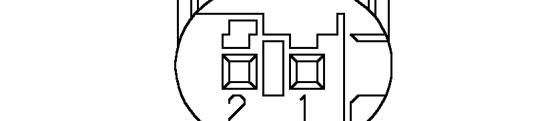

Male
BLACK

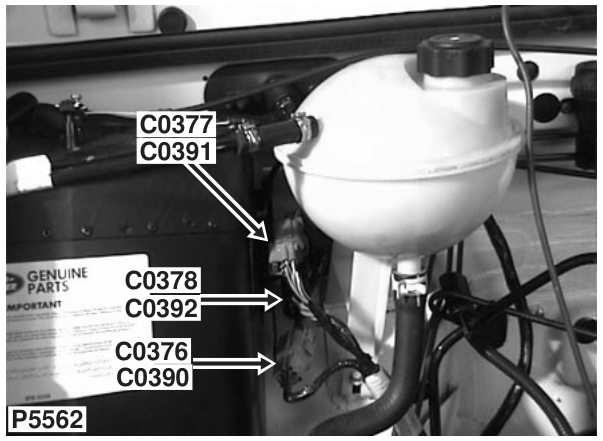

Rear of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | P | ALL |
| 2 | SB | ALL |
| 3 | GB | ALL |
| 4 | PW | 21 |
| 4 | WP | 28 |
