Female
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0449 › Female
ConnectorsFemale
Main harness to engine harness

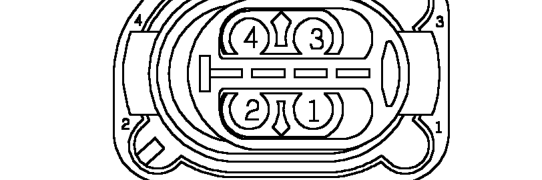

Female
BLACK

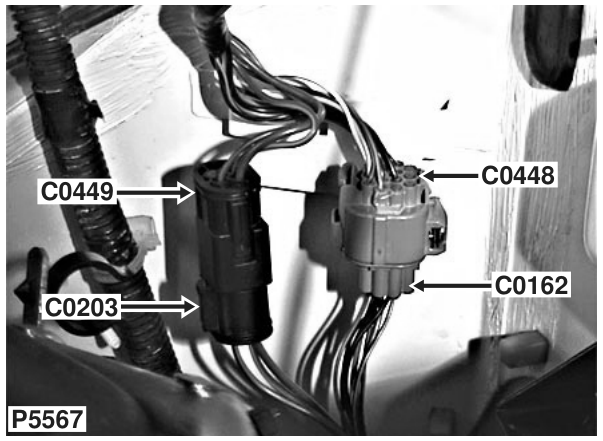

Lower RH rear of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | NR | ALL |
| 2 | NO | 21 |
| 2 | WG | 22 |
| 3 | NS | 1 |
