Female
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0504 › Female
ConnectorsFemale
ECU - ABS

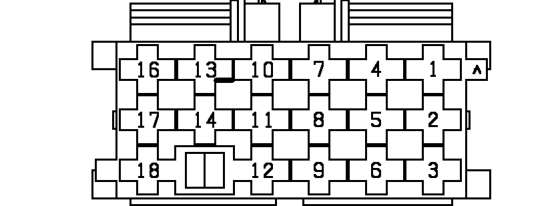

Female
BLACK

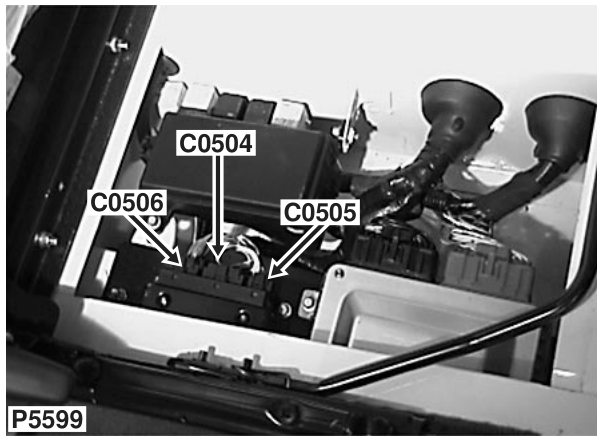

Beneath RH seat
| Cav | Col | CCT |
|---|---|---|
| 1 | NW | 12 |
| 2 | GO | 12 |
| 5 | K | 12 |
| 8 | NR | ALL |
| 9 | BW | 12 |
| 10 | SP | 12 |
| 11 | YK | 12 |
| 12 | B | 12 |
| 17 | YS | ALL |
| 18 | RS | ALL |
