Female
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0512 › Female
ConnectorsFemale
Lamp - Fog guard - Rear - RH

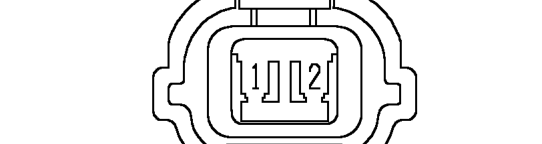

Female
ORANGE

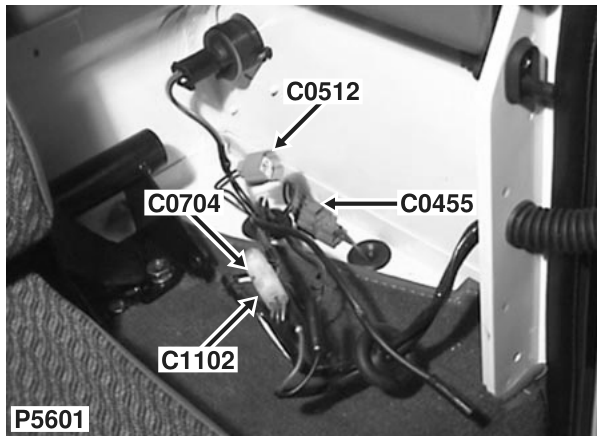

RH side of taildoor, behind trim panel
| Cav | Col | CCT |
|---|---|---|
| 1 | B | ALL |
| 2 | RY | ALL |
