Female
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0521 › Female
ConnectorsFemale

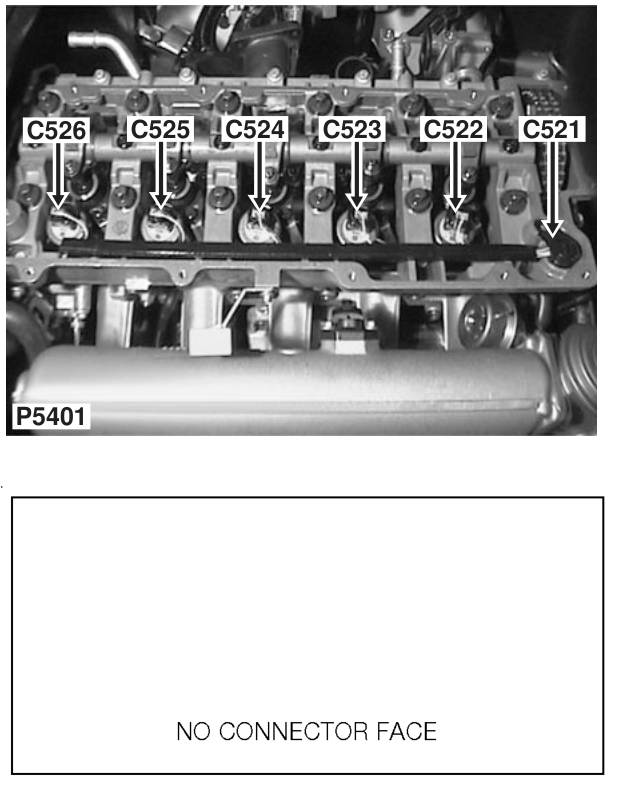

Engine harness to injector harness - Td5
Female
BLACK
Top of engine
| Cav | Col | CCT |
|---|---|---|
| 1 | Y | ALL |
| 2 | YN | ALL |
| 4 | YR | ALL |
| 5 | YP | ALL |
| 6 | YU | ALL |
| 7 | NO | ALL |
| 8 | NB | ALL |
