Female
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0543 › Female
ConnectorsFemale

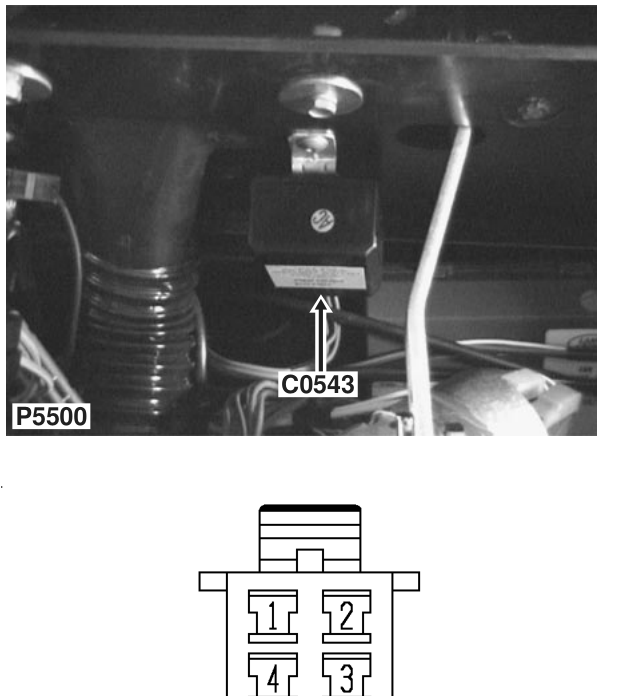

ECU - Lamp - Fog guard - Rear
Female
NATURAL
Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | B | ALL |
| 2 | UP | ALL |
| 3 | RY | ALL |
| 4 | BS | ALL |
