Sensor - Inlet Air
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0567 › Sensor - Inlet Air
ConnectorsSensor - Inlet Air
Sensor - Inlet Air
Temperature (IAT) and Manifold Absolute Pressure (MAP) - Td5

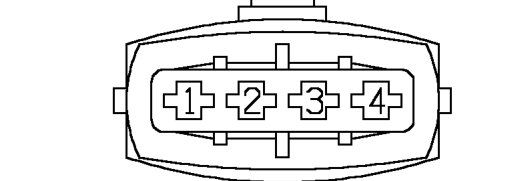

Female
BLACK

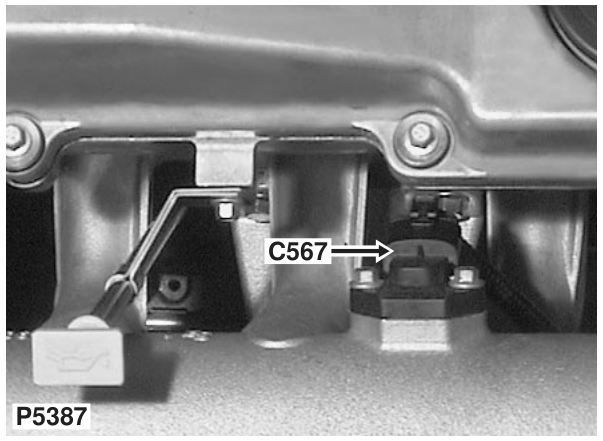

Top of engine - RH side
| Cav | Col | CCT |
|---|---|---|
| 1 | KB | ALL |
| 2 | GB | ALL |
| 3 | KP | ALL |
| 4 | WY | ALL |
