Female
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0658 › Female
ConnectorsFemale

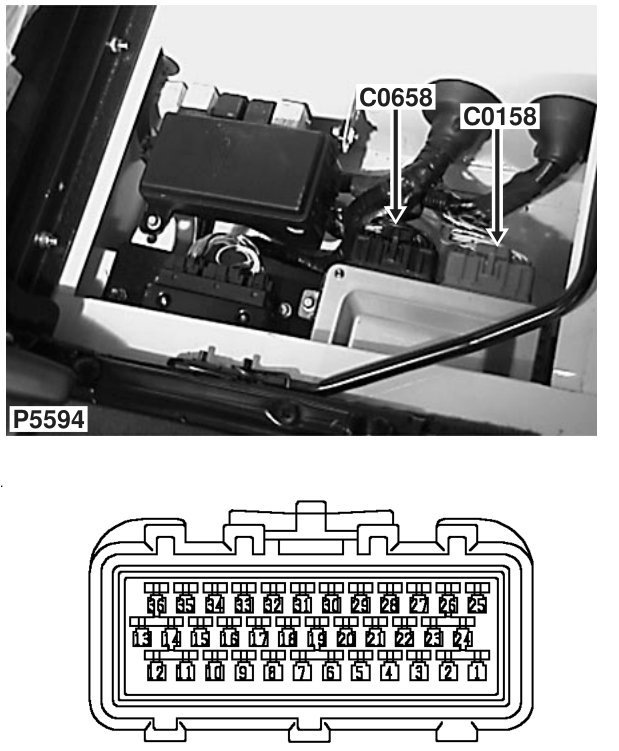

Engine control module (ECM) - Td5
Female
BLACK
Beneath RH seat
Cav Col CCT Cav Col CCT
1 B 21 21 UR 21 2 B 21 22 NO 21 3 NO 21 23 PB 21 4 BP 21 24 B 21 5 UP 21 25 B 21 6 RS 21 26 BY 21 7 GU 21 27 NO 21 9 YS 21 29 BS 21 12 WG 21 30 BY 21 13 YK 21 32 SP 12 14 WP 21 33 WG 21 16 GP 21 34 LGS 21 18 K 21 35 BW 21 19 YK 12 36 WS 21
