Gauge - Fuel
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C1054 › Gauge - Fuel
ConnectorsGauge - Fuel
Gauge - Fuel
Female
BLACK

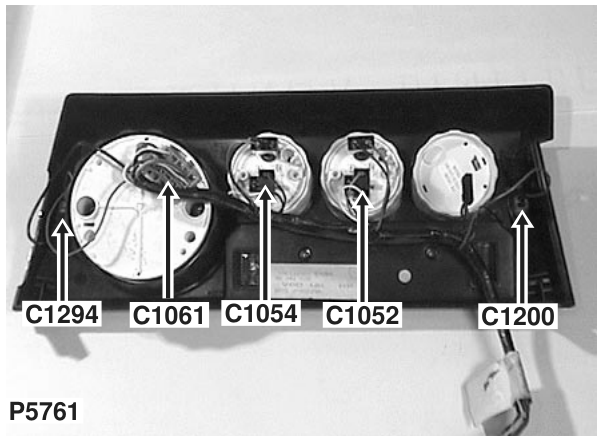

Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | B | ALL |
| 2 | LGB | ALL |
| 3 | WG | ALL |
