Speedometer
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C1061 › Speedometer

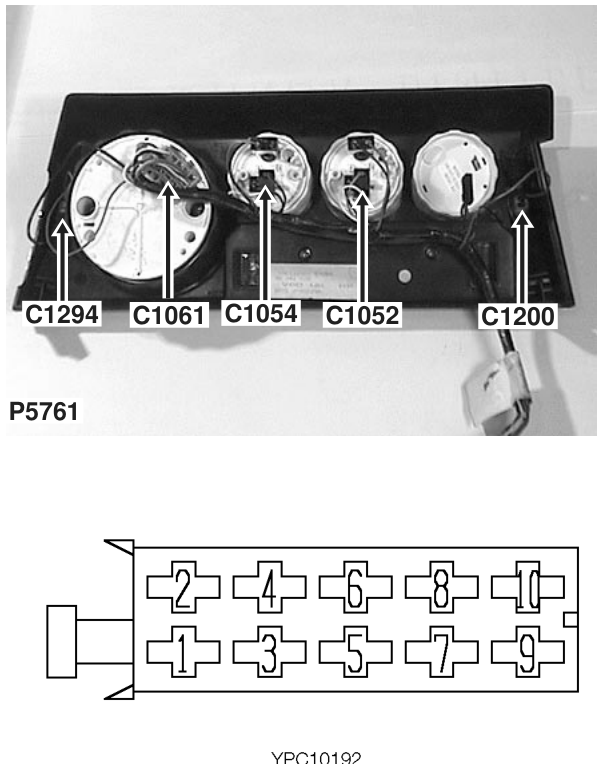

ConnectorsSpeedometer
Speedometer
Female
RED
Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | WO | ALL |
| 3 | GB | ALL |
| 5 | GU | 22 |
| 7 | LGB | ALL |
| 9 | LGU | 22 |
