Male
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C1102 › Male
ConnectorsMale
Tail door harness to chassis harness
Male
NATURAL

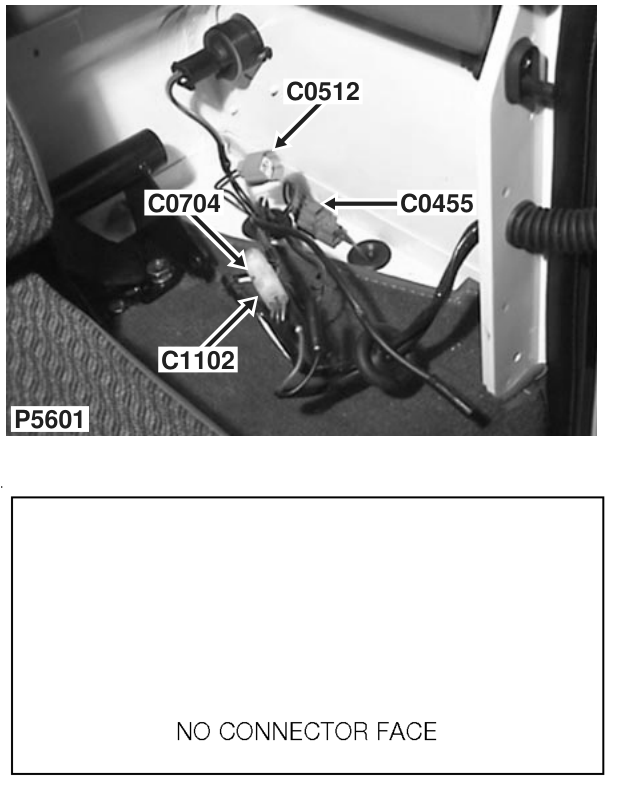

Behind RH rear trim panel
| Cav | Col | CCT |
|---|---|---|
| 1 | G | ALL |
| 2 | RLG | ALL |
| 3 | NLG | ALL |
