Male
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C1267 › Male
ConnectorsMale
Wing harness to main harness - RH

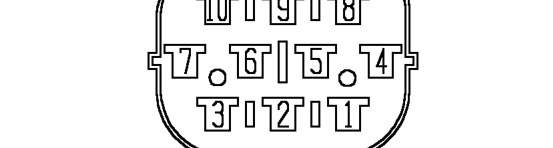

Male
GREY

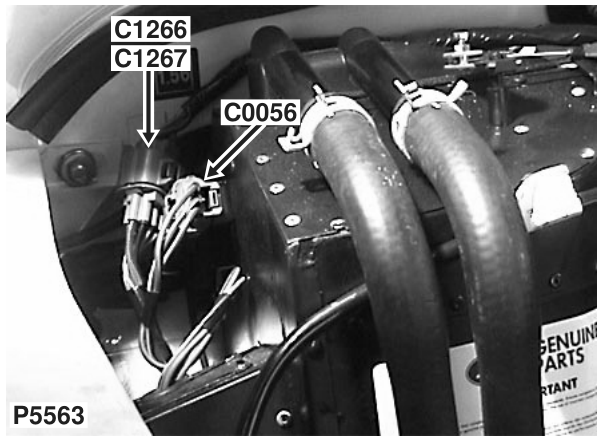

Adjacent heater assembly
| Cav | Col | CCT |
|---|---|---|
| 1 | UO | ALL |
| 2 | UB | ALL |
| 3 | B | ALL |
| 4 | GW | ALL |
| 5 | RO | ALL |
| 6 | PB | ALL |
| 7 | RO | 27 |
| 8 | UY | 27 |
| 9 | NW | 27 |
| 10 | NG | 27 |
