Female Natural
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C1273 › Female Natural
ConnectorsFemale Natural
Unit - Air conditioning (a/c)
Female Natural

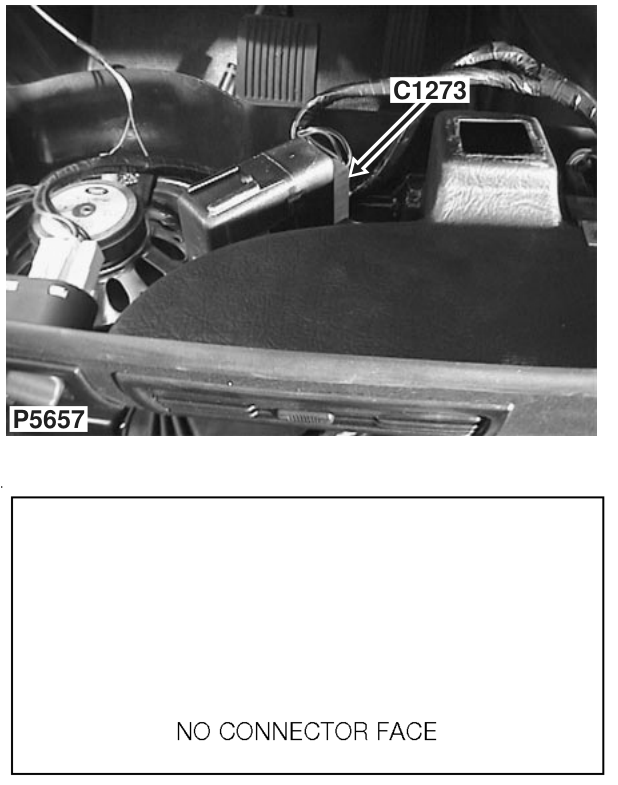

Behind RH side of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | P | 1 |
| 3 | UN | 1 |
| 4 | RW | 1 |
| 5 | B | 1 |
| 6 | NG | 1 |
| 7 | BW | 1 |
| 8 | BW | 1 |
| 10 | U | 1 |
| 11 | WG | 1 |
| 13 | UB | 1 |
| 14 | O | 1 |
