Male
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C1308 › Male
ConnectorsMale
Wing harness to washer pump link harness

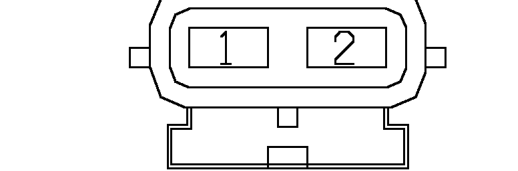

Male
RED

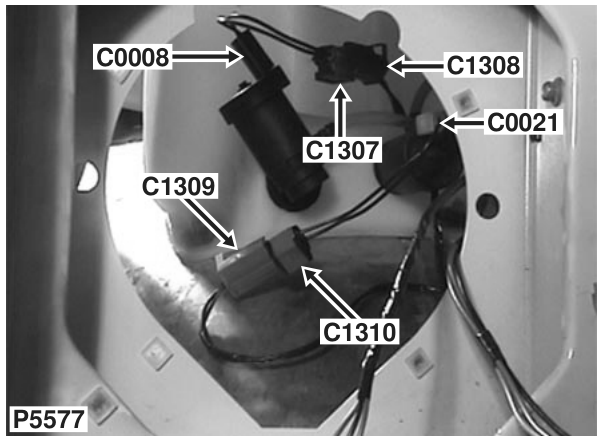

Behind LH headlamp
| Cav | Col | CCT |
|---|---|---|
| 1 | B | ALL |
| 2 | LGB | ALL |
