Female
- Make
- Land Rover
- Model
- Defender V8i Electrical Library
- Section
- C0044 › Female
ConnectorsFemale

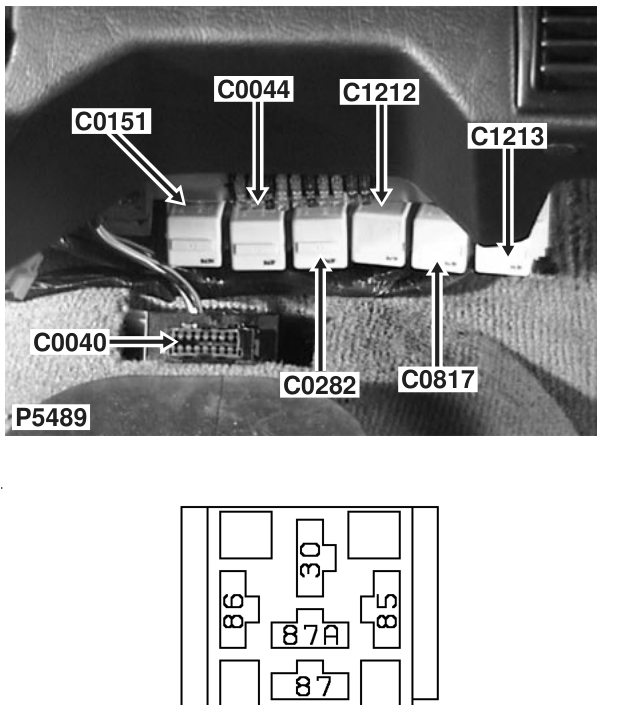

Relay - Heated rear screen
Female
YELLOW
Behind front of centre console
| Cav | Col | CCT |
|---|---|---|
| 30 | WB | ALL |
| 85 | WG | ALL |
| 86 | B | ALL |
| 87 | NS | ALL |
